Product Details
Place of Origin: China
Brand Name: HYZONT
Certification: CCC
Model Number: SAG
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: iron basket
Delivery Time: 15 Days after Payment
Payment Terms: L/C, D/A, D/P, T/T

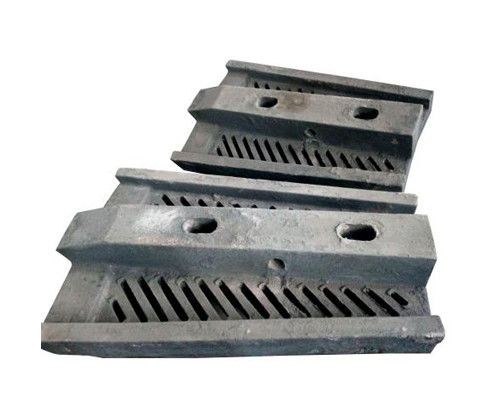

Ball Mill SAG Mill Liner machine spare parts of Ball mill casting ball mill liner
Chromium-GMolybdenum ball mill liner plate is divided into medium Cr-Mo liner plate (A kind of casting steel with the chromium content at 4-6%, the carbon content at 0.4-0.8%)and low Cr-Mo Liner plate(A kind of casting steel with the chromium content at 1.2-2.5%, the carbon content at 0.3-0.6%). Its distinctive feature is to adopt multivariate alloy design. It increases carbide content in the medium carbon alloyed steel, through increasing the Cr-Mo content, the strong carbide forming elements, so as to improve its heat-resisting, wear-resisting performance. As a result, its high strength, strong toughness and good wear resistance properties represent the relatively high level of metal wear resistant materials.
Spec Available
| Name | Chemical Elements(%) | |||||||
| C | Si | Mn | Cr | Mo | Cu | P | S | |
| Medium Cr-Mo Alloyed Liner ZG45Cr5MoRe | 0.4-0.8 | ≤1.2 | 0.6-1.5 | 4-6 | 0.3-1 | 0.3-0.8 | ≤0.04 | ≤0.06 |
| Low Cr-Mo Alloyed Liner ZG40CrMoRe | 0.3-0.6 | ≤1.2 | 0.5-1.2 | 1.2-2.5 | 0.3-1 | 0.3-0.8 | ≤0.04 | ≤0.06 |
Physical Property & Microstructure
| Name | Surface(HRC) | Ak(J/cm2) | Microstructure |
| Medium Cr-Mo Alloyed Liner ZG45Cr5MoRe | ≥48 | ≥20 | M+C |
| Low Cr-Mo Alloyed Liner ZG40CrMoRe | ≥40 | ≥30 | M+C |
| Martensite Carbide Austenite Pearlite | |||
Specification
| Size | Hole Dia.(mm) | Liner Length(mm) | ||
| ≤40 | ≥40 | ≤250 | ≥250 | |
| Tolerance |
+2 0 |
+3 0 |
+2 | +3 |
