Product Details
Place of Origin: USA
Brand Name: Wilcoxon
Certification: CE

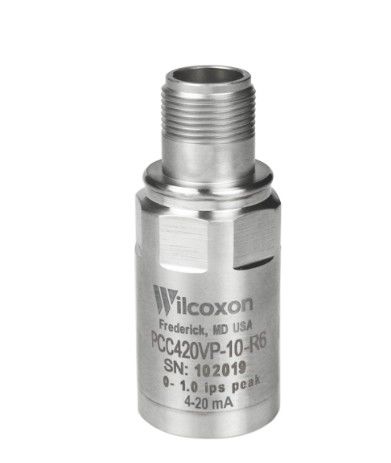

Model Number: PCC420VP-10-R6
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiated sale
Packaging Details: Standard
Delivery Time: 10-60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 set/year
Wilcoxon Model: |
PCC420VP-10-R6 |
Sensitivity: |
100 MV/g |
Sensitivity Tolerance: |
±5% |
Frequency Response ± 3 DB, Hz: |
0.5 - 15,000 |
Resonance Frequency: |
22 KHz |
Max Temperature: |
120°C |
Bias Output Voltage: |
Bias Output Voltage |
Electrical Noise 100 Hz: |
5 µg/√Hz |
Temperature Sensor Output Sensitivity: |
10 MV/°C |
Grounding: |
Case Isolated |
Mounting: |
Mounting |
Output Connector: |
3-pin MIL-C-5015 |
Compliance: |
CE •[CSA/ATEX/IECEx] |
Wilcoxon Model: |
PCC420VP-10-R6 |
Sensitivity: |
100 MV/g |
Sensitivity Tolerance: |
±5% |
Frequency Response ± 3 DB, Hz: |
0.5 - 15,000 |
Resonance Frequency: |
22 KHz |
Max Temperature: |
120°C |
Bias Output Voltage: |
Bias Output Voltage |
Electrical Noise 100 Hz: |
5 µg/√Hz |
Temperature Sensor Output Sensitivity: |
10 MV/°C |
Grounding: |
Case Isolated |
Mounting: |
Mounting |
Output Connector: |
3-pin MIL-C-5015 |
Compliance: |
CE •[CSA/ATEX/IECEx] |
4-20 mA Vibration Transmitters Compact vibration transmitter, velocity, 4-20 mA output proportional to peak velocity
| PARAMETER | VALUE |
|---|---|
| Sensor output | 4-20 mA |
| Measurement unit | Velocity |
| Detector type | Peak |
| Full-scale range | 1.0 IPS |
| Frequency response, ±3 dB | 3.5 Hz - 2,000 Hz |
| Connector style | MIL-C-5015, 2-pin |
| Connector orientation | Top exit |
| Temperature range | -40°C to +105°C |
| Weight | 120 grams |
| Hazardous area approvals | Non-approved |
